Which Fuel Line Gets The Filter On A Ryobi Weed Eater

Introduction

This guide will testify you how to replace the fuel lines and filter on your Ryobi RY253SS String Trimmer. It requires no prior experience in small engine repair.

The fuel filter, for this model cord trimmer, needs to exist replaced either after 25 hours of run fourth dimension or each year. The filter ensures that debris does non enter the fuel organisation of the engine, thus maintaining proper performance of your string trimmer. Another reason you may need to replace the fuel filter is if you take not been using the proper fuel to oil ratio in the fuel mixture. This can cause the engine bug when starting. This prepare can exhale new life into your string trimmer and have it running similar to the 24-hour interval you got it out of the box.

  1. With your hands, remove the air filter cover from your edge trimmer. This will expose the air filter and the screws that attach the housing to the frame. Remove the air filter before moving to the next step.

    • With your hands, remove the air filter cover from your edge trimmer.

    • This will expose the air filter and the screws that attach the housing to the frame.

    • Remove the air filter before moving to the next step.

  2. Remove the  two M5 x 45 mm  shoulder screws attaching the air filter housing to the engine frame using a flathead screwdriver. Pull the housing away from the engine block. The screws also attach the carburetor to the frame.

    • Remove the two M5 x 45 mm shoulder screws attaching the air filter housing to the engine frame using a flathead screwdriver.

    • Pull the housing abroad from the engine block.

    • The screws as well attach the carburetor to the frame.

  3. Pull the carburetor away from the engine block. Gently remove the input fuel line from the carburetor.

    • Pull the carburetor abroad from the engine block.

    • Gently remove the input fuel line from the carburetor.

    • Gently remove the output fuel line from the carburetor.

  4. Use the cutting pliers to cut the excess line flush to the tank. Use a screwdriver to push the remaining line into the tank. Use a screwdriver to push the remaining line into the tank.

    • Use the cutting pliers to cut the backlog line flush to the tank.

    • Use a screwdriver to push the remaining line into the tank.

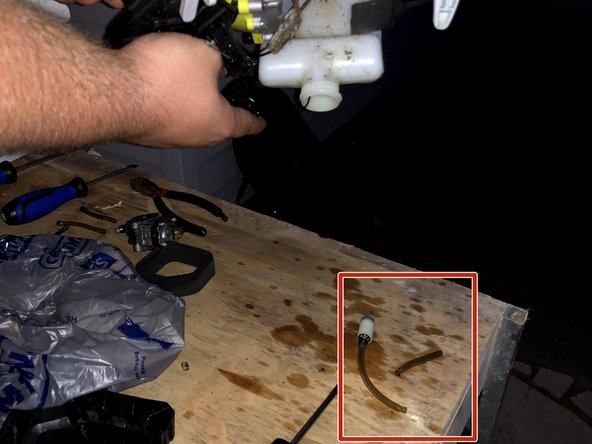

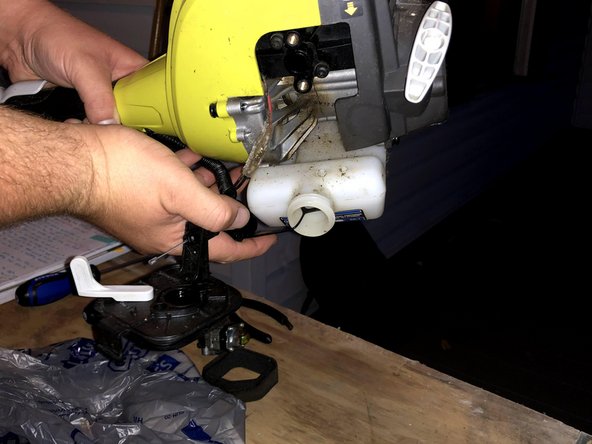

  5. The lines should now be in the tank. Lift and shake the edge trimmer until both lines fall out of the tank. Lift and shake the edge trimmer until both lines fall out of the tank.

    • The lines should now exist in the tank.

    • Lift and shake the edge trimmer until both lines fall out of the tank.

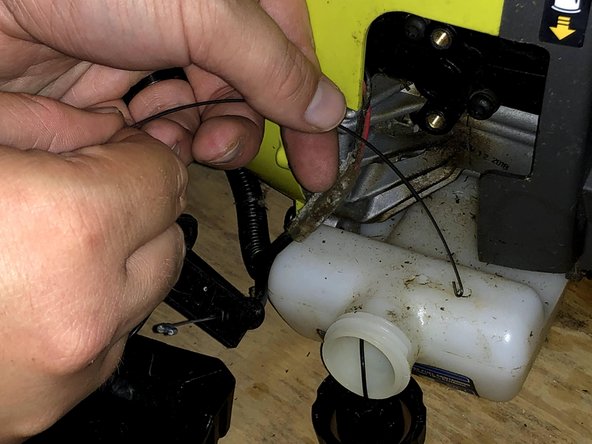

  6. Thread the gripping tool through the input line on the tank. Thread the tool through the gas cap opening.

    • Thread the gripping tool through the input line on the tank.

    • Thread the tool through the gas cap opening.

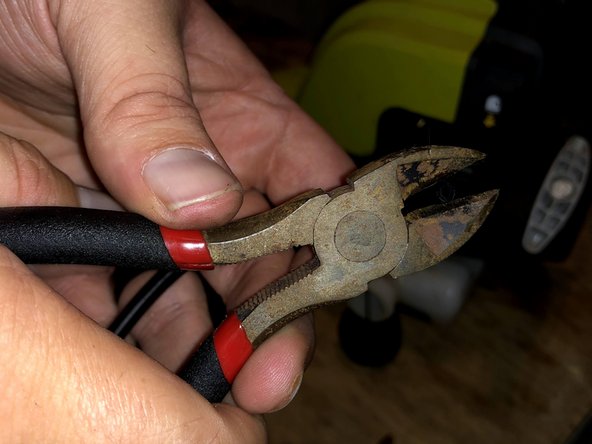

  7. Use the cutting pliers to taper the end of the fuel line. A larger taper will make it easier to thread the fuel line through the hole in the tank.

    • Use the cutting pliers to taper the end of the fuel line.

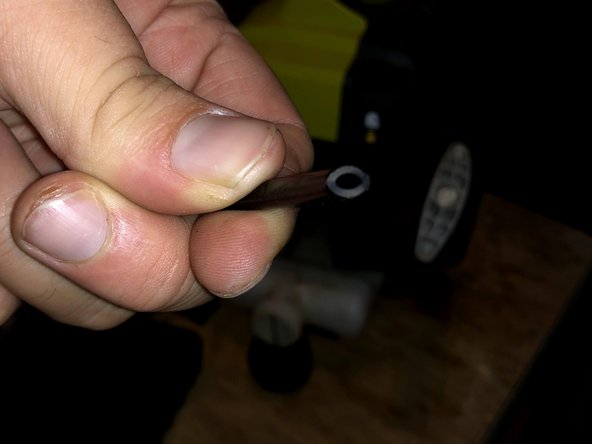

    • A larger taper will brand it easier to thread the fuel line through the hole in the tank.

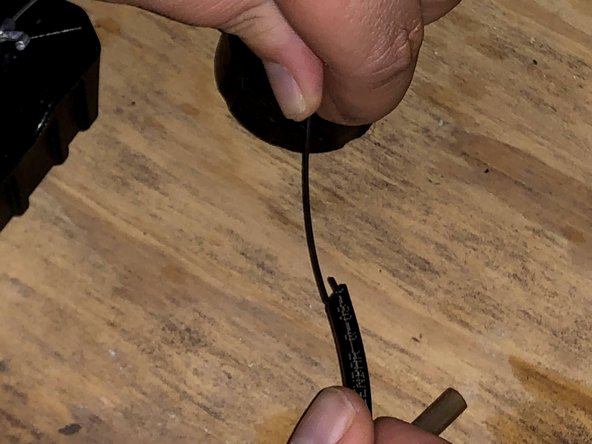

  8. Insert the hooked end of the gripping tool into the fuel line. Clamp the hook to avoid puncturing the tube or the gas tank when pulling it through.

    • Insert the hooked end of the gripping tool into the fuel line.

    • Clamp the claw to avert puncturing the tube or the gas tank when pulling it through.

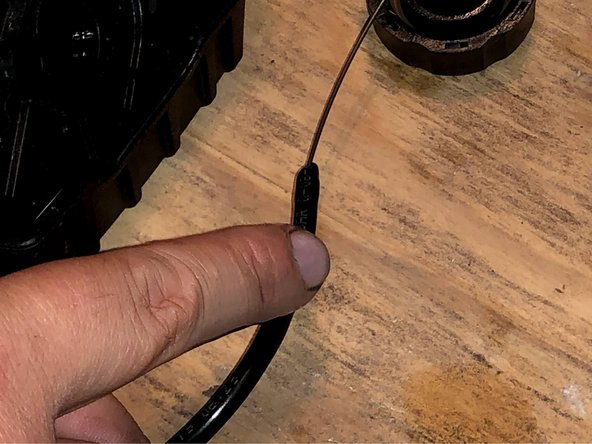

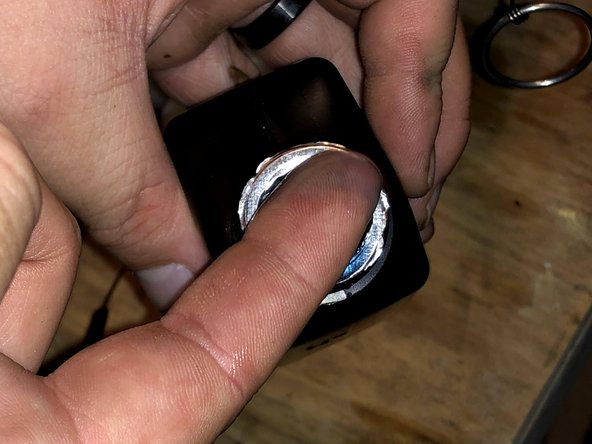

  9. Lubricate the fuel line with the 2-Cycle oil. The 2-Cycle Oil will more easily allow the fuel line to move through the hole in the gas tank. Only use proper 2-Cycle oil to avoid contamination of the fuel tank.

    • Lubricate the fuel line with the 2-Cycle oil.

    • The 2-Bike Oil will more than easily allow the fuel line to move through the pigsty in the gas tank.

    • Only use proper 2-Cycle oil to avoid contamination of the fuel tank.

  10. Place your finger through the key ring end of the gripping tool. Pull the tool until the line begins to make its way through the hole. Grab the fuel line directly with your hand to continue pulling it completely through.

    • Identify your finger through the key ring end of the gripping tool.

    • Pull the tool until the line begins to make its manner through the hole.

    • Take hold of the fuel line direct with your hand to keep pulling it completely through.

    • Make sure to use the fuel line connected to the fuel filter for the input line.

    • Use caution when pulling on the gripping tool, if yous use too much forcefulness you can non just puncture the fuel line, but you can also puncture the tank.

  11. Using the same methods as the previous steps, thread the output fuel line through the tank. Using the same methods as the previous steps, thread the output fuel line through the tank. Using the same methods as the previous steps, thread the output fuel line through the tank.

    • Using the same methods as the previous steps, thread the output fuel line through the tank.

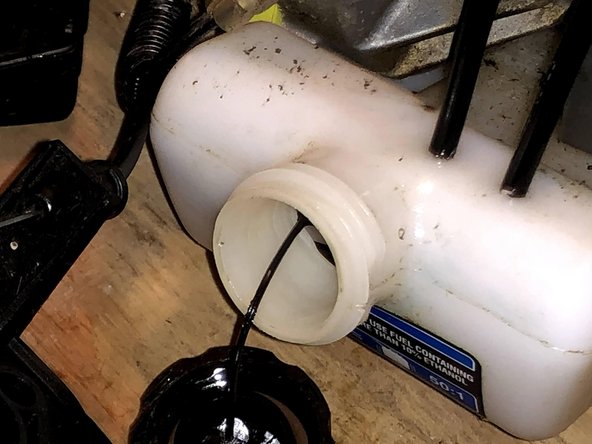

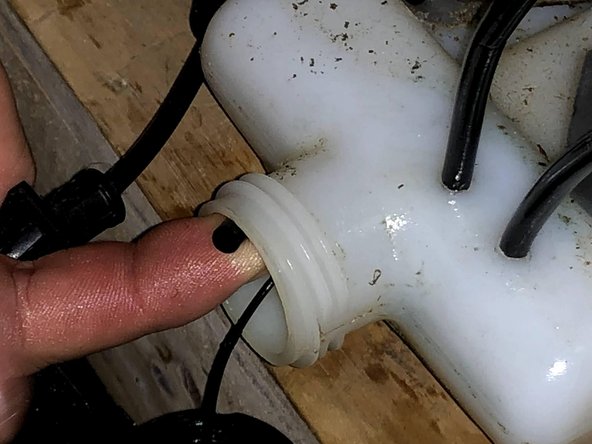

  12. Push the remaining fuel line into the gas tank. Push the remaining fuel line into the gas tank. Push the remaining fuel line into the gas tank.

    • Push the remaining fuel line into the gas tank.

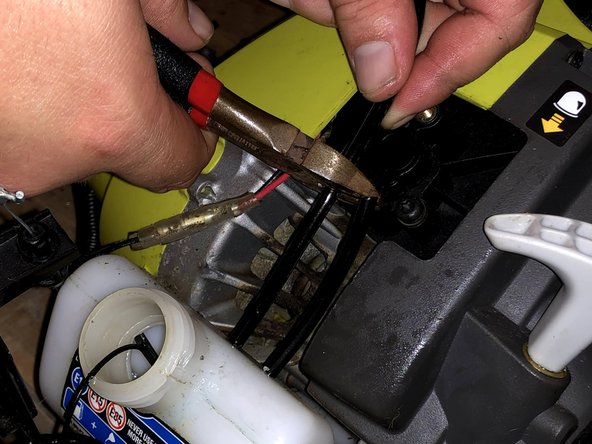

  13. Use your cutting pliers to cut the excess fuel line to an appropriate length. Cut the line to an appropriate length as shown in Picture 3. Cut the line to an appropriate length as shown in Picture 3.

    • Apply your cut pliers to cut the backlog fuel line to an appropriate length.

    • Cut the line to an appropriate length equally shown in Picture three.

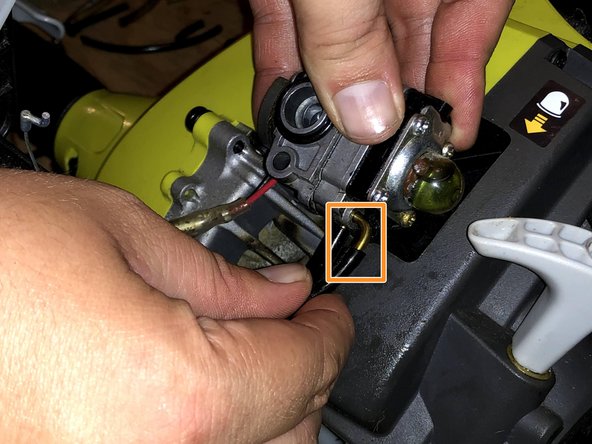

  14. Attach the output fuel line back to the carburetor. Attach the input fuel line back to the carburetor. Push the fuel lines up as far as you can to the carburetor block.

    • Attach the output fuel line dorsum to the carburetor.

    • Attach the input fuel line back to the carburetor.

    • Push the fuel lines up as far every bit you can to the carburetor block.

Decision

To reassemble your device, follow steps 1 and 2 in opposite gild.
